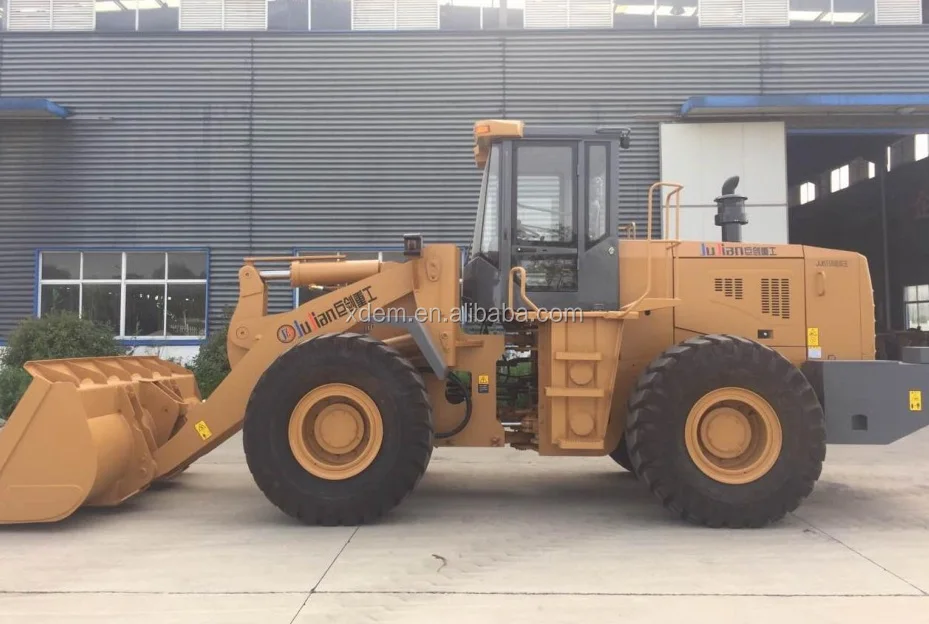

Ninggong 5 Ton NG855 Wheel Loader
Main specifications and characters of NG855 loader
1.Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.
2.Easy-to-read gauges display and ergonomically designed controls make the driving convenient and comfortable
3.Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety
4.Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise ,high reliability .Double-stage air filter is standard equipment for dusty fields.

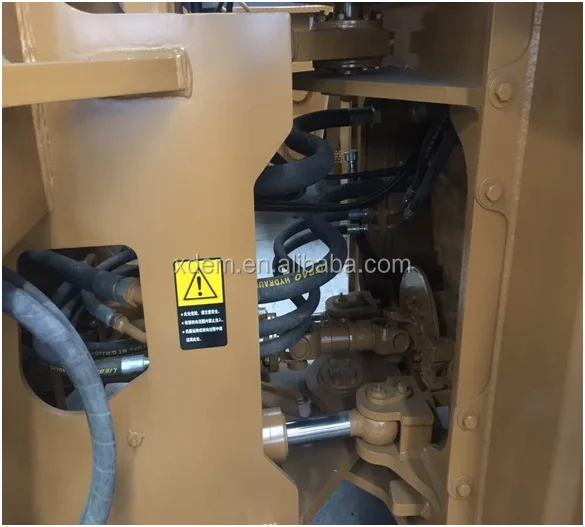

5.Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable
6.Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy
7.Pilot hydraulic implement controls make operate easy and comfortable
8.The big loading engine side covers made in steel are of good appearance and suitable for maintenance
| Main Technical Specification |
| 1 | Rated load | 5000(Kg) |
| 2 | Operating weight | 16600KG |
| 3 | Rated bucket capacity | 2.7~3.0(m3) |
| 4 | Max. breakout force | 170kN |
| 5 | Max. dump clearance | 3103(mm) |
| 6 | Dump reach | 1210(mm) |
| 7 | Overall Dimension (Length*width*height) | 7900*3000*3400mm |
| 8 | Treadbase | 3230mm |
| 9 | Wheelbase | 2240mm |
| 10 | Lifting time of bucket | ≤6.0(sec.) |
| 11 | Pivot angle frame | ±35 |
| Engine ≤6.2(sec.) |
| 1 | Model | WD10G22E11,D9-220 |
| 2 | Type | Four-stroke Direct injection. Water cooling |
| 3 | Lowering time of bucket | ≤3.8(sec.) |
| 4 | Dumping time | ≤1.8(sec.) |
| 5 | Rated output//speed | 162kw/2200rpm |
| 6 | Max. Torque(NM)/speed(RPM) | 860/1400-1600, 855±20/1300-1500 |
| 7 | specific fuel consumption(g/kw.h) | 225±5, ≤220 |
| 8 | Displacement of cylinder | 9.726,8.82 L |
