Name: TeleHandler Telescopic Loader 3ton 7m 14m 18m Telescopic Forklift
Brand: XDEM
Price: 34500 USD

Brand Name : XDEM

Model Number : TH730

Place of Origin : China

MOQ : 1 unit

Price : USD34500

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 UNIT PER

Delivery Time : 30days

Load capacity : 3ton

arm : elescopic arm

Over Weight : 8600KG

Max lift Height : 7200MM

Wheel Base : 1990MM

Overall height : 2280MM

Contact Now

Technical parameters of Telescopic forklift Handler

Items			Unit	Deviation allowed	HNT25-4	HNT30-4	HNT35-4
Basic parameter	Rated load		kg	-	2500	3000	3500
	Load center		mm	-	500	500	500
	Load capacity @ max. Forward reach		kg	-	1000	1250	1550
	Basic boom max. Lifting height		mm	±1.5 %	4850	4850	4850
	Max. Lifting height		mm	±1.5%	7000	700 0	7000
	Max. Horizontal reach		mm	±1.5%	3350	3350	3350
	Min. Horizontal reach		mm	±1.5%	930	930	930
	Min. Ground clearance		mm	±1.5%	400	400	400
	Min. Turning radius ( outer tyre center)		mm	≤105%	6200	6200	6200
	Angle	Boom frame upward angle	°	±1.0	60	60	60
	Angle	Boom frame downward angle	°	±1.0	-11	-11	-11
	Operating weight		kg	±5%	8200	8600	9000
Overall dimension	Length (with fork)		mm	±2%	5730	5730	5730
	Width		mm	±2%	2390	2390	2390
	Height		mm	±2%	2485	2485	2485
	Wheel tread		mm	±1%	1870	1870	1870
	Wheel base		mm	±1%	2700	2700	2700
Rated power / Rated turning speed			kW/rpm	-	60/2000	60/2000	60/2000
Driving system	Max. Travelling speed (unloaded)		km/h	±10%	30	30	30
Driving system	Gradeability		%	-	≥30%	≥30%	≥30%
Tyre	Front (2 pcs)		-	-	16/70-24	16/70-24	16/70-24
Tyre	Rear (2 pcs)		-	-	10-20-16	10.00-20-16	10.00-20-16
Engine	Dongfeng Cummins		-	National 2	4BTA3.9-C80II	4BTA3.9-C80II	4BTA3.9-C80II
Engine	Dongfeng Cummins		-	National 3	QSB3.9-C80	QSB3.9-C80	QSB3.9-C80

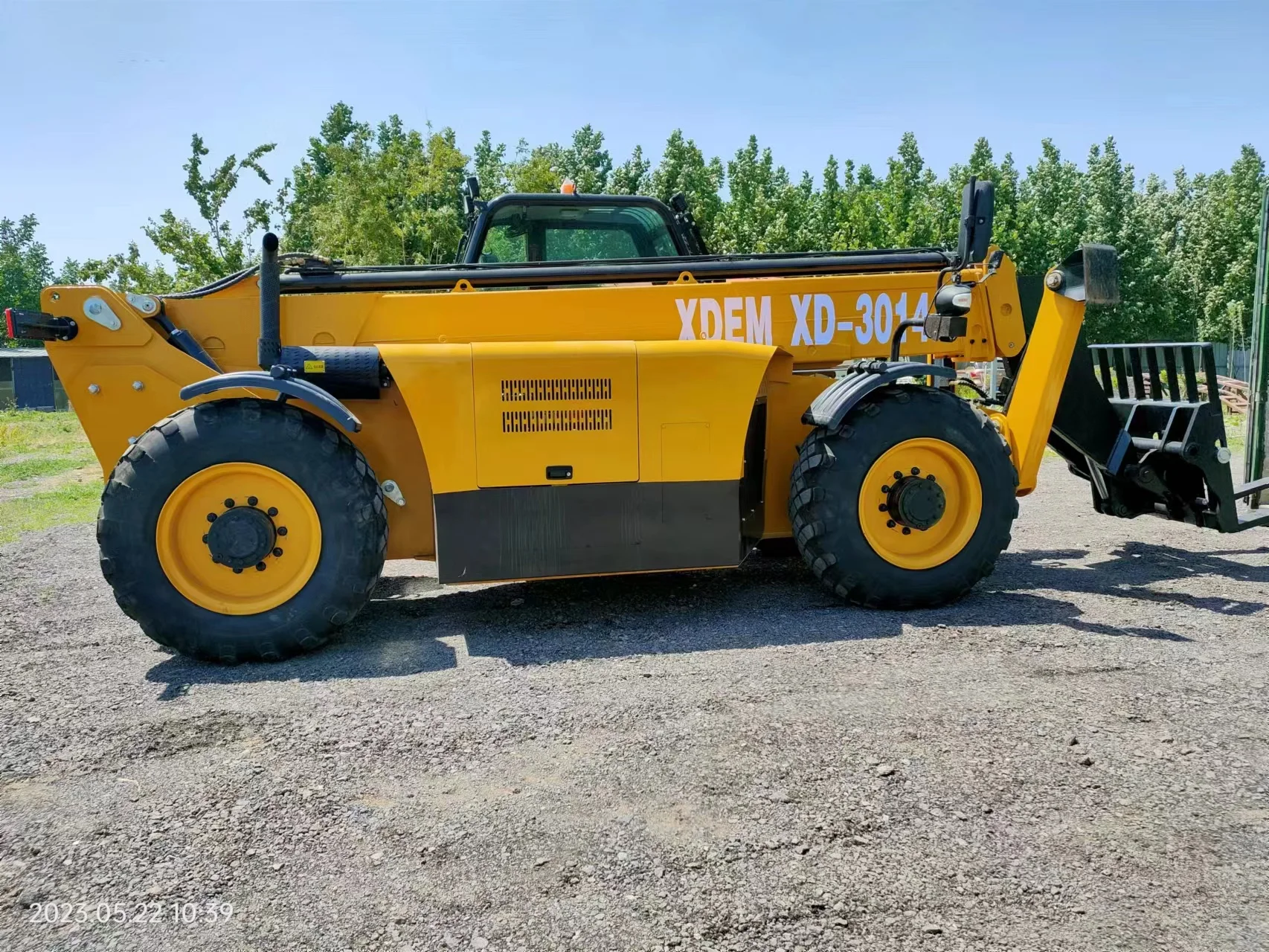

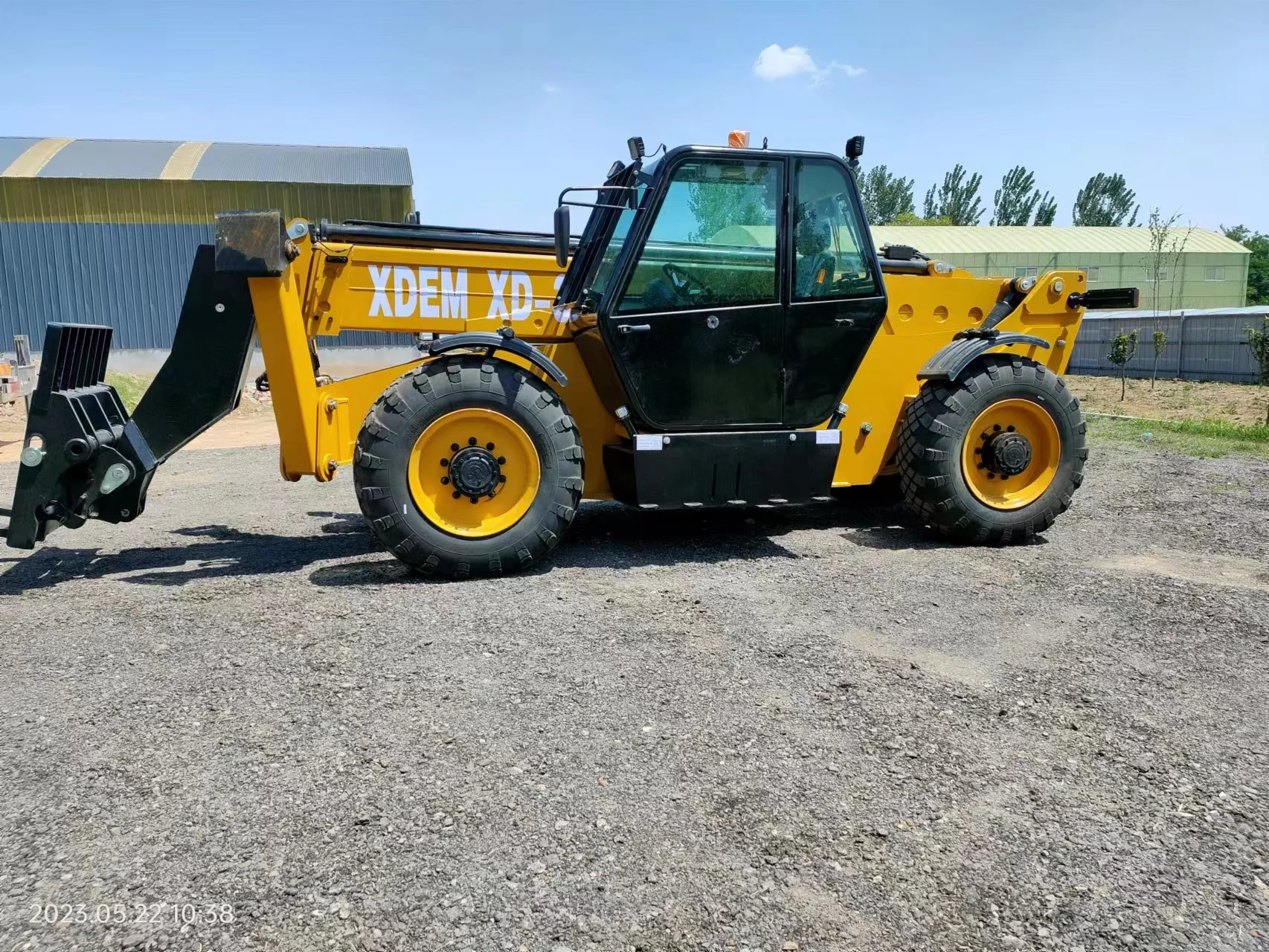

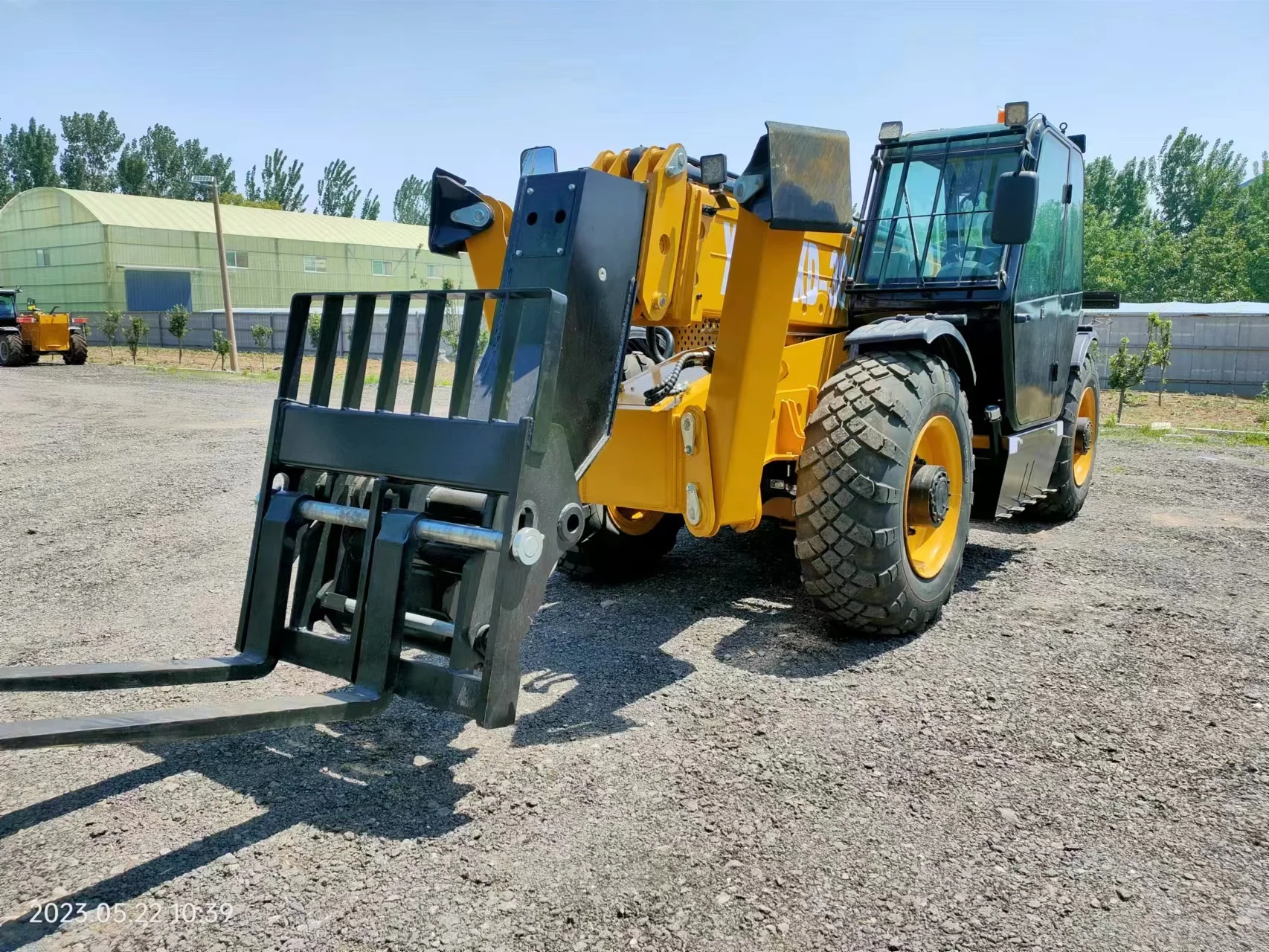

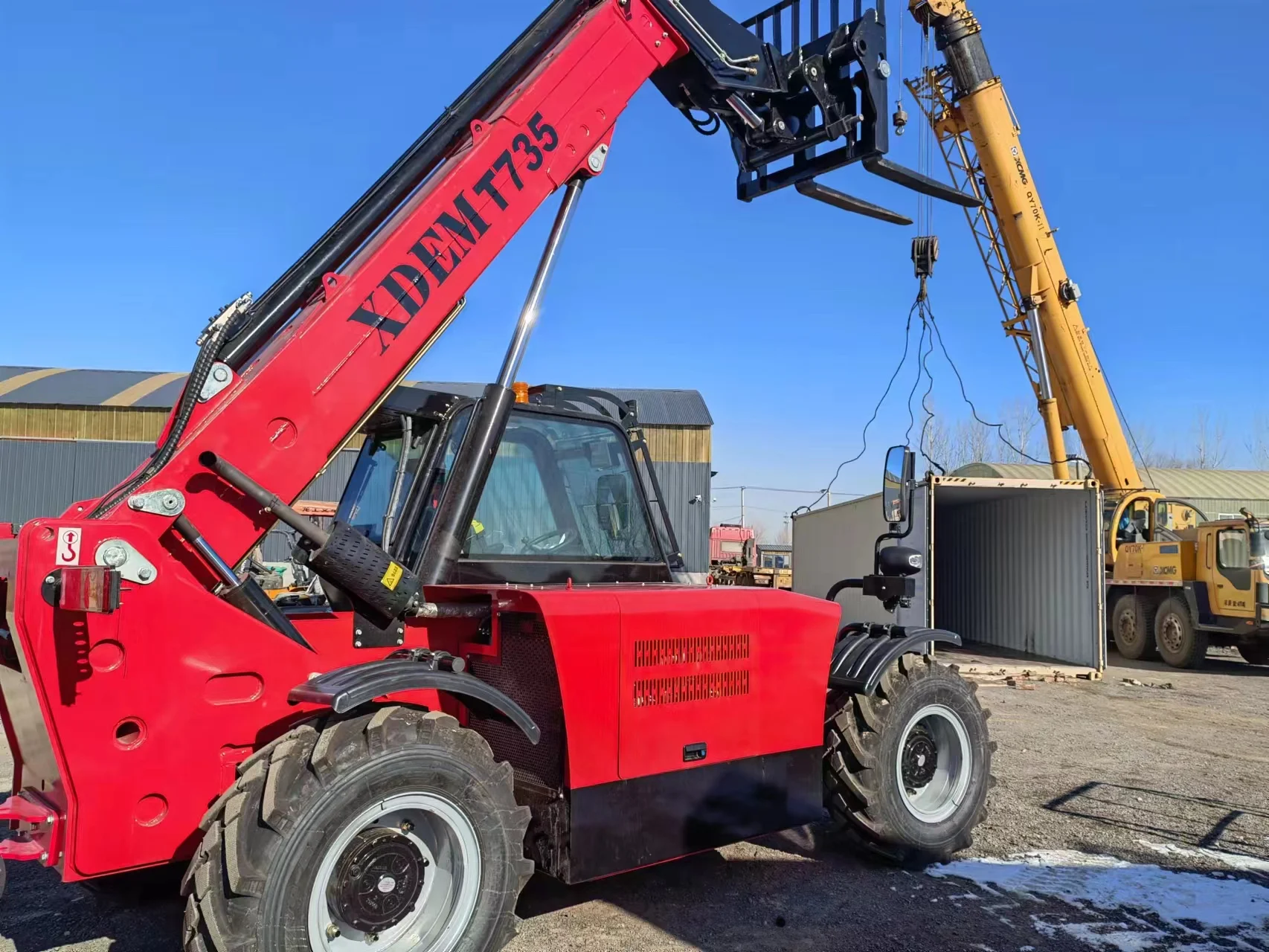

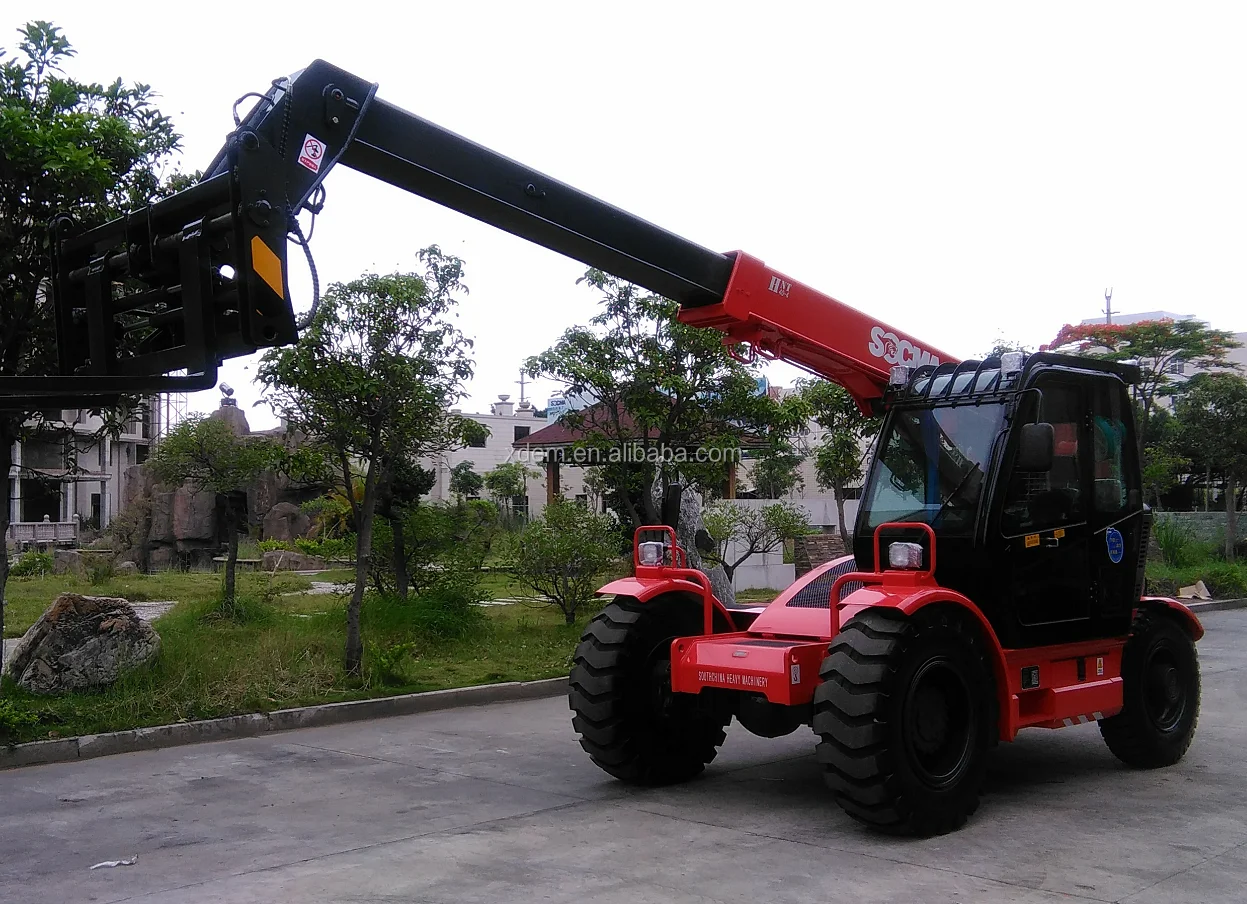

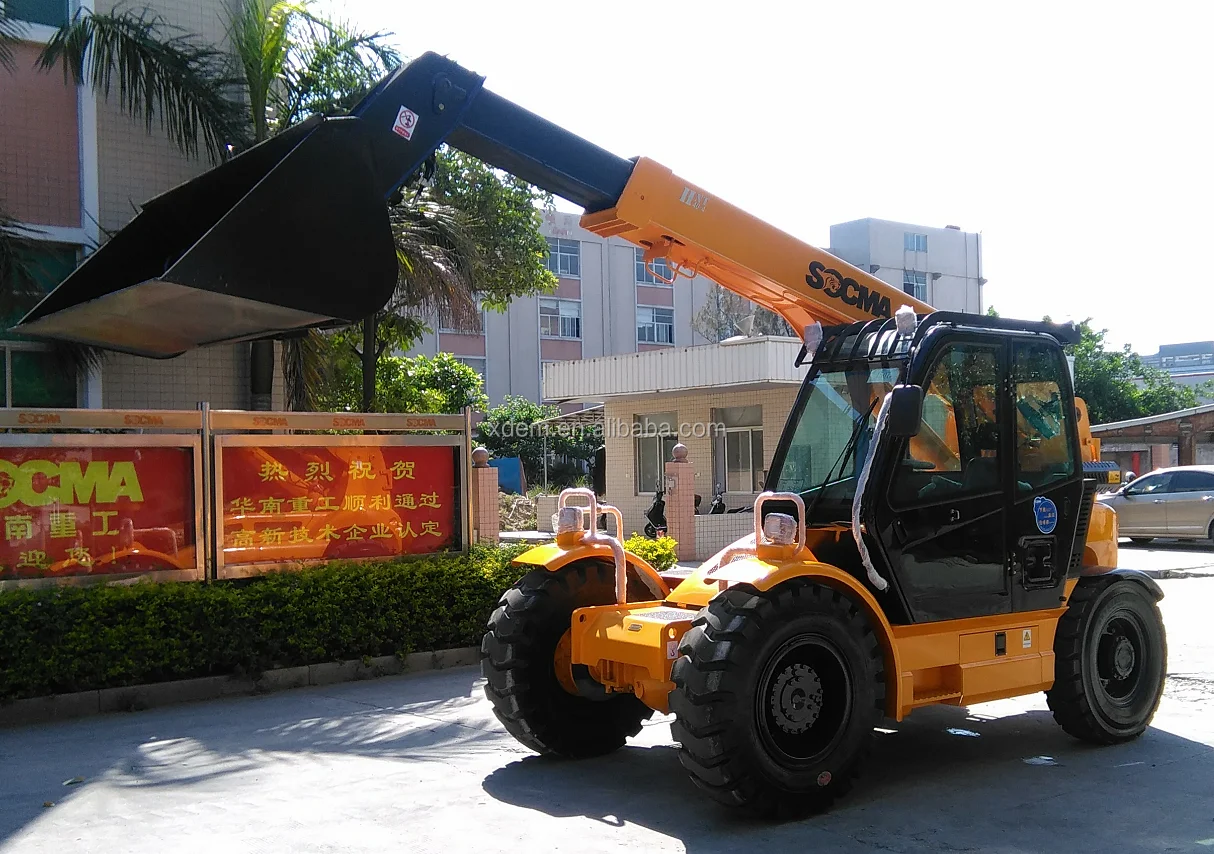

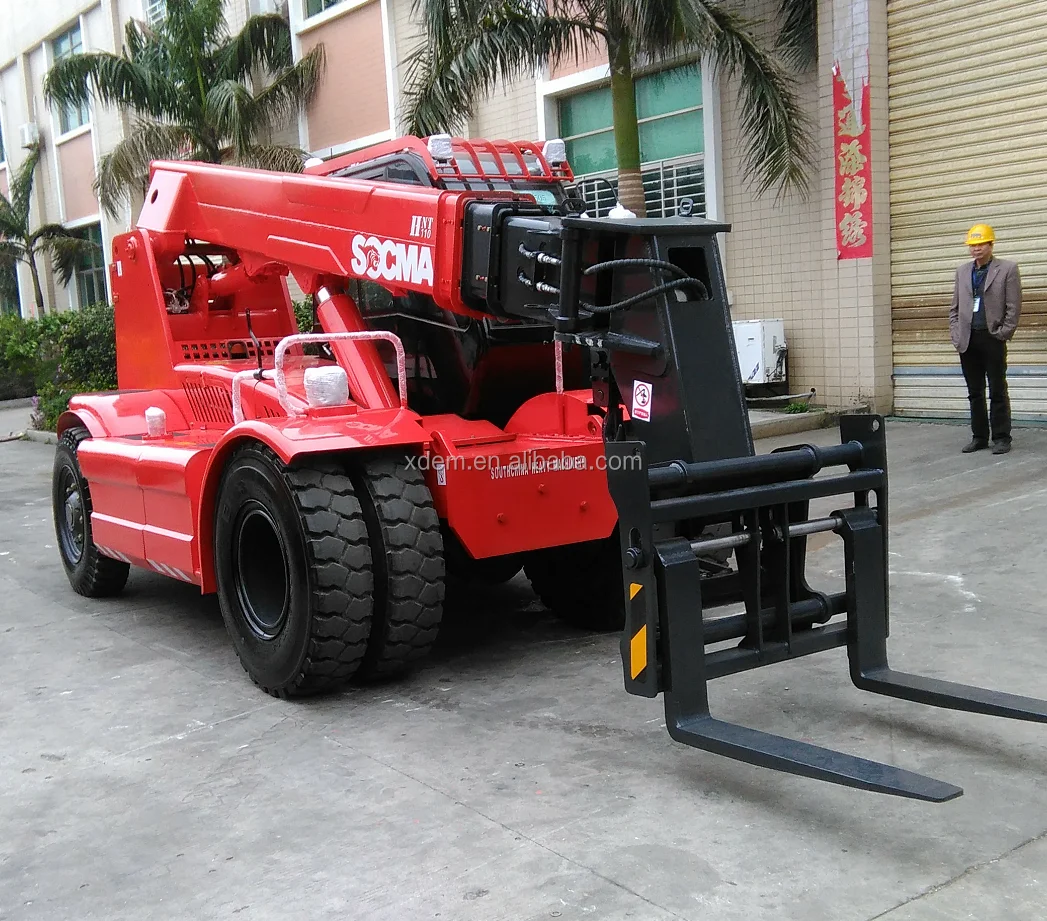

Photos of Telescopic forklift

TeleHandler , Telescopic Loader , 3ton 7m 14m, 18m Telescopic Forklift

Exhibition

Our Company Show
