Name: Good Quality Factory 18ton Wheel Excavator SZL180 SHANZHONG Hydraulic Digger
Brand: XDEM
Price: 67800 USD

Brand Name : XDEM

Model Number : SZL180

Place of Origin : China

MOQ : 1 unit

Price : USD67800/unit

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200unit per month

Delivery Time : 30days

operationing weight : 17000KG

rated speed : 93/2200 (kw/rpm)

Max Digging Height : 9960mm

Max Digging Radius : 9000mm

power : 127hp

Wheelbase : 2730mm

Max Digging Depth : 5680

Bucket capacity : 0.8m3

Moving Type : wheel excavator

Contact Now

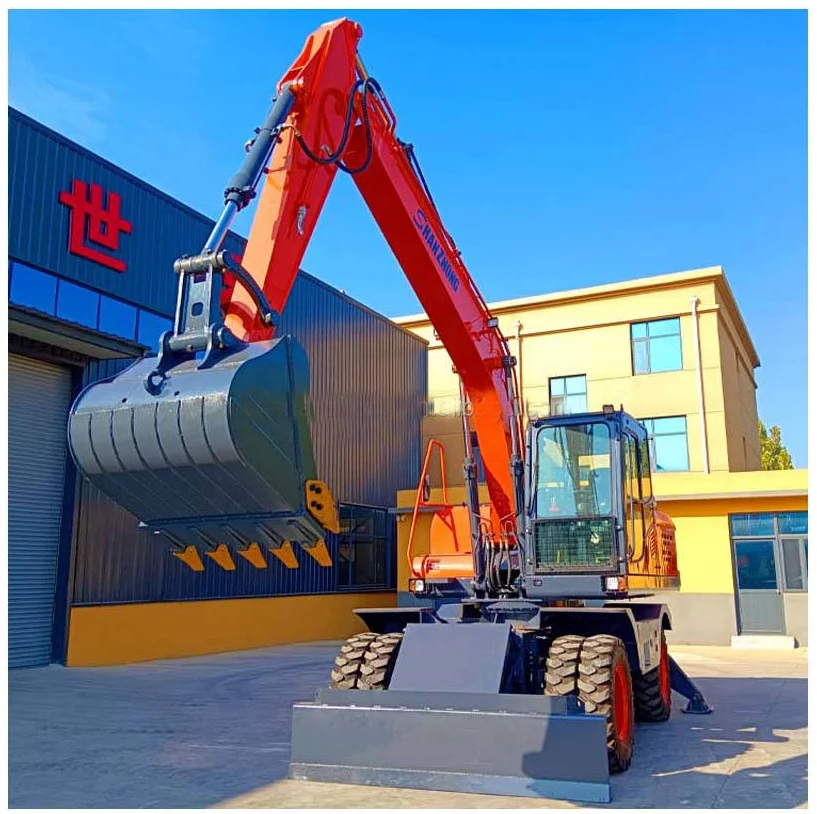

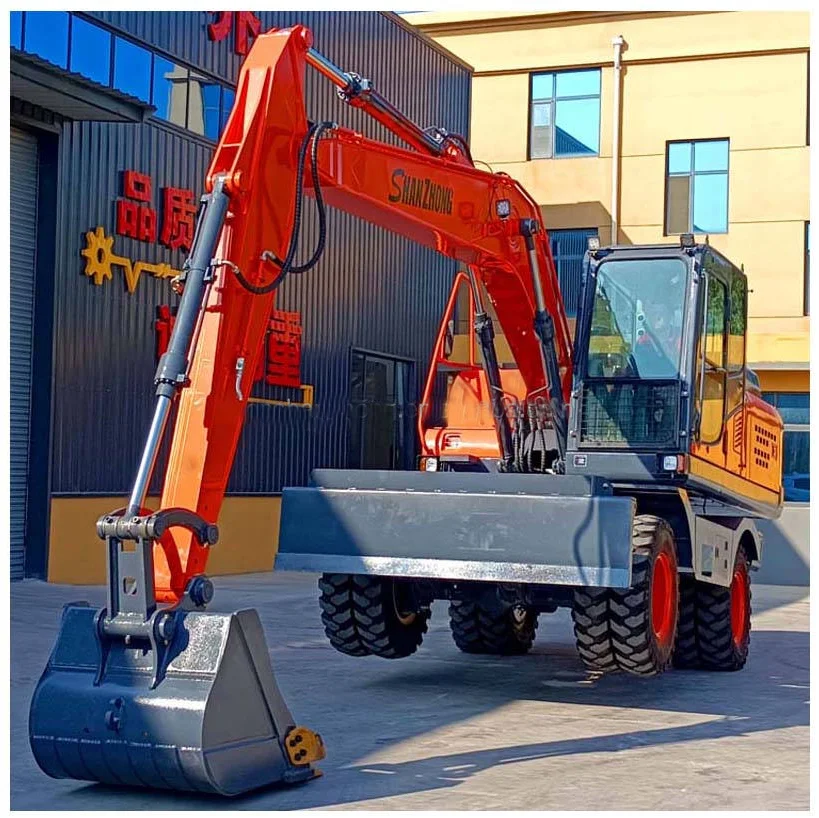

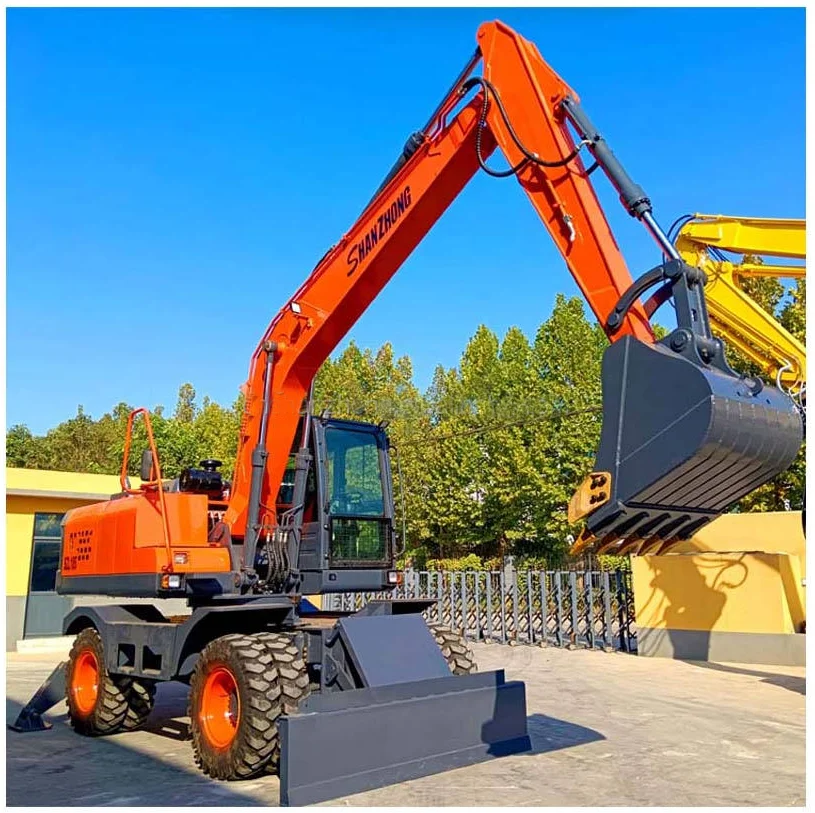

17ton wheel Excavator SZL180 hydraulic Digger

Good Quality Factory 18ton Wheel Excavator SZL180 SHANZHONG Hydraulic Digger

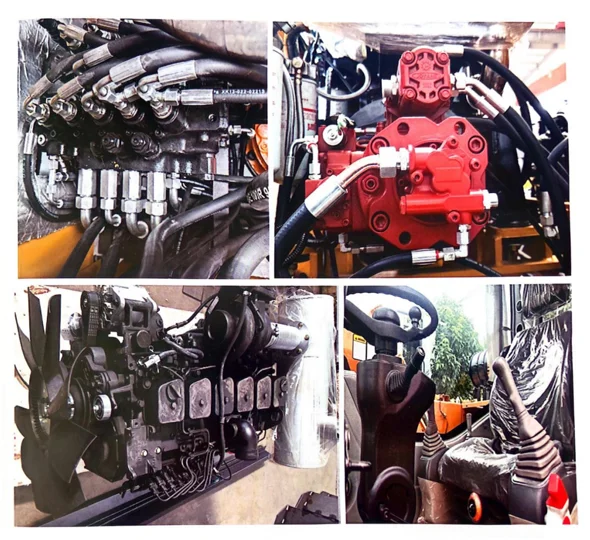

Cummins brand engine with 6 cylinders

weight: 17000kg

Bucket Capacity: 0.8m3

Fully imported hydraulic system adopts negative flow control system

Intelligent control, comfortable driving, simple operation, four-wheel drive, four-wheel hydraulic oil brake.

Firm structure and the best materials more suitable for harsh working conditions

Good Quality Factory 18ton Wheel Excavator SZL180 SHANZHONG Hydraulic Digger

Item	Size
Shipping Length	7820m
Shipping Height	3370mm
Overall Width	2780mm
Radius,Swing Center to Rear End	2430mm
Wheelbase	2730mm
Wheel Tread	2030mm
Counterweight Ground Clearance	1250mm
Min Ground Clearance	270mm
Ground Clearance of Outrigger	380mm
Ground Clearance of Transmission	360mm
Width of Bulldozer Plate	2600mm
Height of Bulldozer Plate	560mm
Lifting Height of Bulldozer Plate	420mm
Bucket Volume	0.8m³
Boom Length	4900mm
Arm Length	3435mm
Max.Digging Radius	9000mm
Max.Digging Height	9660mm
Max.Digging Depth	5680mm
Max.Dumping Height	6900mm
Hydraulic System Pressure	31.5Mpa
Hydraulic System Flow	2*126 l/min
Bucket Digging Force	86kn
Arm Digging Force	55kn
Rotation Speed	14r/min
Travel Speed	28-40km/h
Gradeability	35%
Approximate Weight	17000kg

Good Quality Factory 18ton Wheel Excavator SZL180 SHANZHONG Hydraulic Digger
