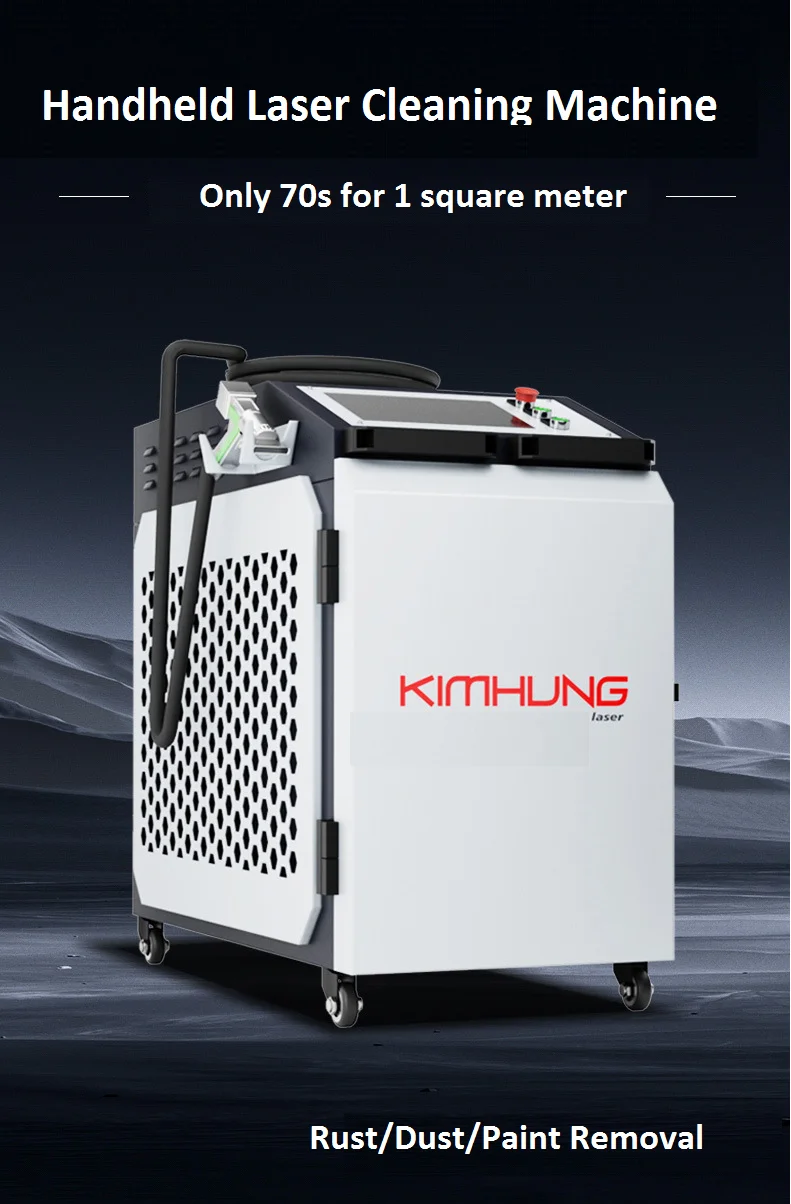

The integrated water-cooled laser cleaning machine adopts a vertical design, integrating a water cooling system, a nanosecond fiber laser system, a control software system, a safety system and a light output system.
High-power laser has excellent cleaning performance and can clean ultra-thick paint layers of 500-1500μm, meeting the cleaning needs of high-value-added medium and large products in the production workshop of enterprises. Such as the inner wall cleaning of high-end silent tires and self-repairing tires in the new energy vehicle industry chain;The cleaning of aluminum and titanium alloys in the manufacturing process of new rail transit vehicles;The layered paint removal and cleaning of carriages during the high-speed rail maintenance process, etc.
Technical Specification:
| Equipment name | Laser rust removal machine | Operation mode | Continuous |
| Laser wavelength | 1070 ± 20NM | Scanning speed | 20000MM/S |
| Scan width | 10MM-300MM | Cooling method | Water-cooling |
| Working voltage | 220V/380V |
| Equipment power | 1000W/1500W/2000w/3000W |
| Equipment weight | 134KG/134KG/136KG/207KG |

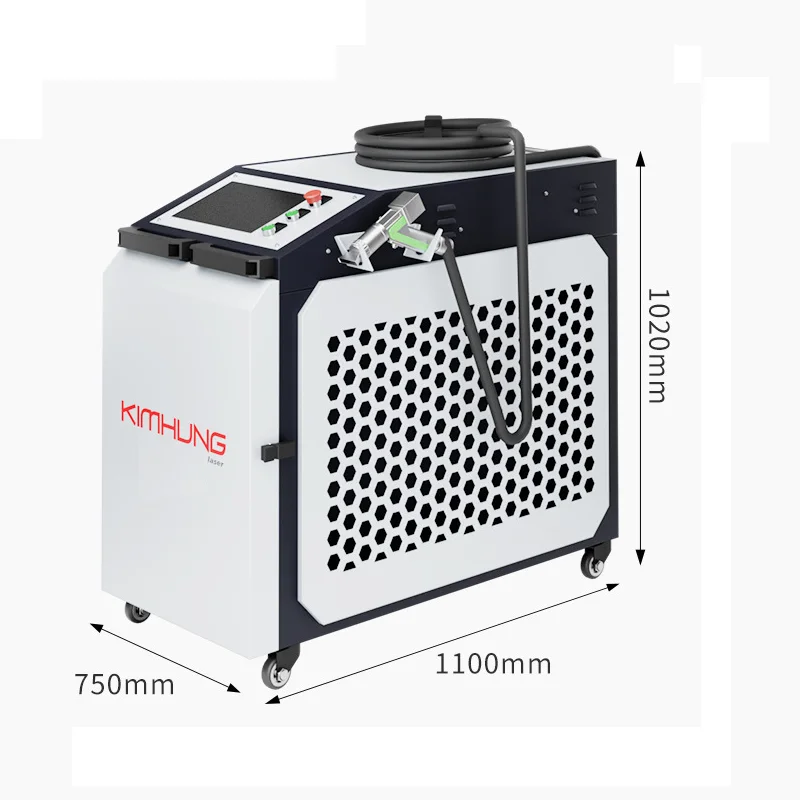

| Equipment size | 1100*750*1020MM |
| Fiber length | Standard configuration of ten meters, can be extended to 15 meters |

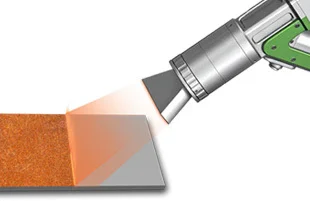

Continuous operation without burning lensesFlexible operation, easy to clean on large irregular workpieces, short focal length, lightweight laser head, can easily find the focus position under different field lenses using red light indication
Stable, efficient, energy-saving, good experience, basic maintenance free, low cost
Brand water cooler
Intelligent regulation, high temperature accuracy, strengthened heat dissipation duct design, durable and long-lasting

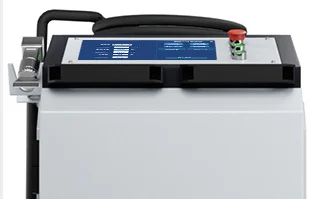

Intelligent control panel
Full touch screen operation interface, clear at a glance of work and status, one-time setting, adjustable at any time

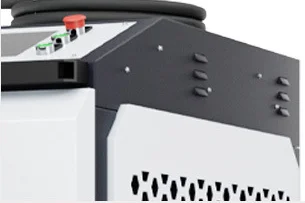

Chassis outer body
High material carbon steel shell with appearance patent, spray coating for corrosion prevention

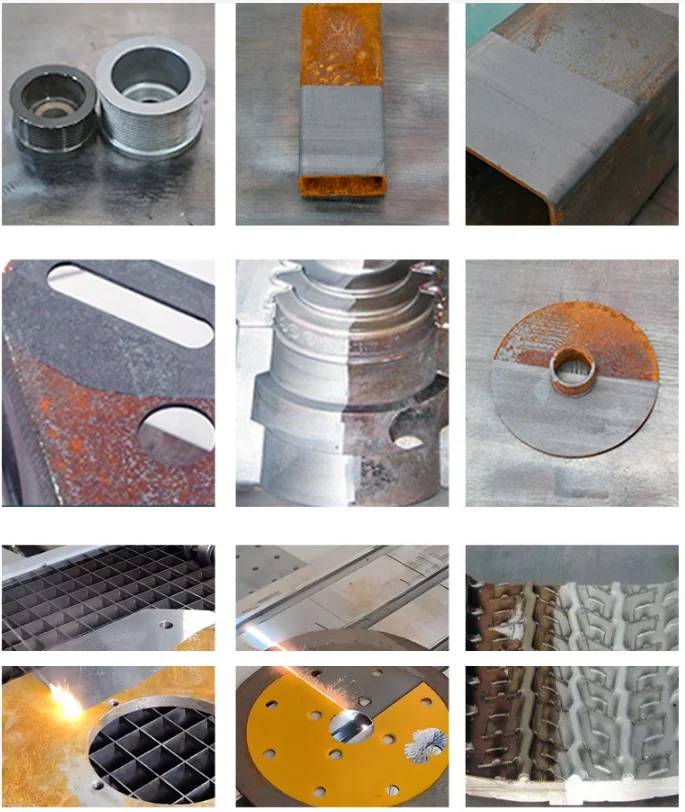

Applications:
Continuous operation without burning lenses
